Geometric Manipulations¶

Set-theoretic Methods¶

GeoSeries.boundary¶: Returns a GeoSeries of lower dimensional objects representing each geometries’s set-theoretic boundary.

GeoSeries.difference(other)¶: Returns a GeoSeries of the points in each geometry that are not in the other object.

GeoSeries.intersection(other)¶: Returns a GeoSeries of the intersection of each object with the other geometric object.

GeoSeries.symmetric_difference(other)¶: Returns a GeoSeries of the points in each object not in the other geometric object, and the points in the other not in this object.

GeoSeries.union(other)¶: Returns a GeoSeries of the union of points from each object and the other geometric object.

GeoSeries.unary_union¶: Return a geometry containing the union of all geometries in the GeoSeries.

Constructive Methods¶

GeoSeries.buffer(distance, resolution=16)¶: Returns a GeoSeries of geometries representing all points within a given distance of each geometric object.

GeoSeries.convex_hull¶: Returns a GeoSeries of geometries representing the smallest convex Polygon containing all the points in each object unless the number of points in the object is less than three. For two points, the convex hull collapses to a LineString; for 1, a Point.

GeoSeries.envelope¶: Returns a GeoSeries of geometries representing the point or smallest rectangular polygon (with sides parallel to the coordinate axes) that contains each object.

GeoSeries.simplify(tolerance, preserve_topology=True)¶: Returns a GeoSeries containing a simplified representation of each object.

Affine transformations¶

GeoSeries.rotate(self, angle, origin='center', use_radians=False)¶: Rotate the coordinates of the GeoSeries.

GeoSeries.scale(self, xfact=1.0, yfact=1.0, zfact=1.0, origin='center')¶: Scale the geometries of the GeoSeries along each (x, y, z) dimensio.

GeoSeries.skew(self, angle, origin='center', use_radians=False)¶: Shear/Skew the geometries of the GeoSeries by angles along x and y dimensions.

GeoSeries.translate(self, angle, origin='center', use_radians=False)¶: Shift the coordinates of the GeoSeries.

Aggregating methods

>>> p1 = Polygon([(0, 0), (1, 0), (1, 1)])
>>> p2 = Polygon([(0, 0), (1, 0), (1, 1), (0, 1)])
>>> p3 = Polygon([(2, 0), (3, 0), (3, 1), (2, 1)])
>>> g = GeoSeries([p1, p2, p3])
>>> g
0    POLYGON ((0.0000000000000000 0.000000000000000...
1    POLYGON ((0.0000000000000000 0.000000000000000...
2    POLYGON ((2.0000000000000000 0.000000000000000...
dtype: object

Some geographic operations return normal pandas object. The area property of a GeoSeries will return a pandas.Series containing the area of each item in the GeoSeries:

>>> print g.area
0    0.5
1    1.0
2    1.0
dtype: float64

Other operations return GeoPandas objects:

>>> g.buffer(0.5)
Out[15]:
0    POLYGON ((-0.3535533905932737 0.35355339059327...
1    POLYGON ((-0.5000000000000000 0.00000000000000...
2    POLYGON ((1.5000000000000000 0.000000000000000...
dtype: object

GeoPandas objects also know how to plot themselves. GeoPandas uses descartes to generate a matplotlib plot. To generate a plot of our GeoSeries, use:

>>> g.plot()

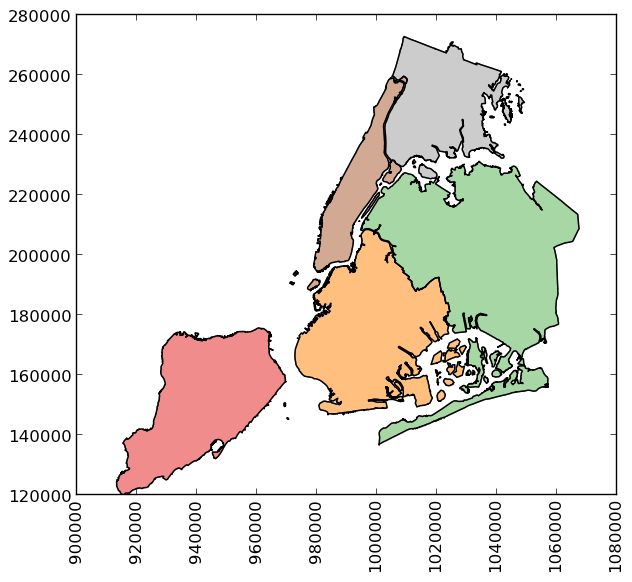

GeoPandas also implements alternate constructors that can read any data format recognized by fiona. To read a file containing the boroughs of New York City:

>>> boros = GeoDataFrame.from_file('nybb.shp')
>>> boros.set_index('BoroCode', inplace=True)
>>> boros.sort()
>>> boros
               BoroName    Shape_Area     Shape_Leng  \
BoroCode
1             Manhattan  6.364422e+08  358532.956418
2                 Bronx  1.186804e+09  464517.890553
3              Brooklyn  1.959432e+09  726568.946340
4                Queens  3.049947e+09  861038.479299
5         Staten Island  1.623853e+09  330385.036974

                                                   geometry
BoroCode
1         (POLYGON ((981219.0557861328125000 188655.3157...
2         (POLYGON ((1012821.8057861328125000 229228.264...
3         (POLYGON ((1021176.4790039062500000 151374.796...
4         (POLYGON ((1029606.0765991210937500 156073.814...
5         (POLYGON ((970217.0223999023437500 145643.3322...

>>> boros['geometry'].convex_hull
  POLYGON ((915517.6877458114176989 120121.88125...
  POLYGON ((1000721.5317993164062500 136681.7761...
  POLYGON ((988872.8212280273437500 146772.03179...
  POLYGON ((977855.4451904296875000 188082.32238...
  POLYGON ((1017949.9776000976562500 225426.8845...
dtype: object

To demonstrate a more complex operation, we’ll generate a GeoSeries containing 2000 random points:

>>> from shapely.geometry import Point
>>> xmin, xmax, ymin, ymax = 900000, 1080000, 120000, 280000
>>> xc = (xmax - xmin) * np.random.random(2000) + xmin
>>> yc = (ymax - ymin) * np.random.random(2000) + ymin
>>> pts = GeoSeries([Point(x, y) for x, y in zip(xc, yc)])

Now draw a circle with fixed radius around each point:

>>> circles = pts.buffer(2000)

We can collapse these circles into a single shapely MultiPolygon geometry with

>>> mp = circles.unary_union

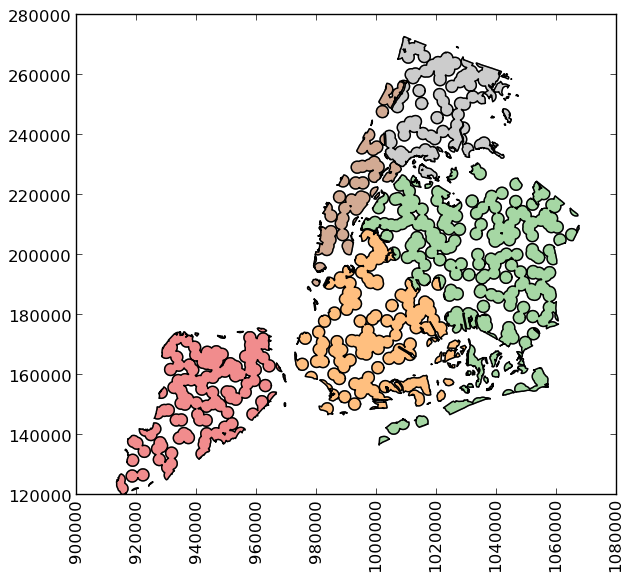

To extract the part of this geometry contained in each borough, we can just use:

>>> holes = boros['geometry'].intersection(mp)

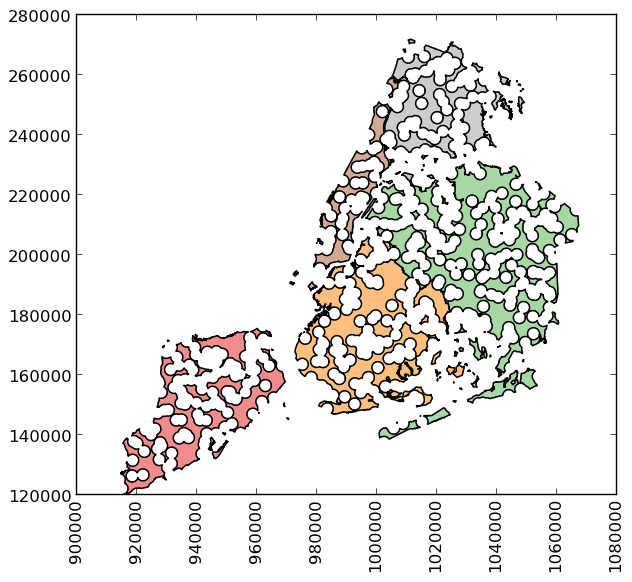

and to get the area outside of the holes:

>>> boros_with_holes = boros['geometry'].difference(mp)

Note that this can be simplified a bit, since geometry is available as an attribute on a GeoDataFrame, and the intersection and difference methods are implemented with the “&” and “-” operators, respectively. For example, the latter could have been expressed simply as boros.geometry - mp.

It’s easy to do things like calculate the fractional area in each borough that are in the holes:

>>> holes.area / boros.geometry.area
BoroCode
1           0.602015
2           0.523457
3           0.585901
4           0.577020
5           0.559507
dtype: float64
